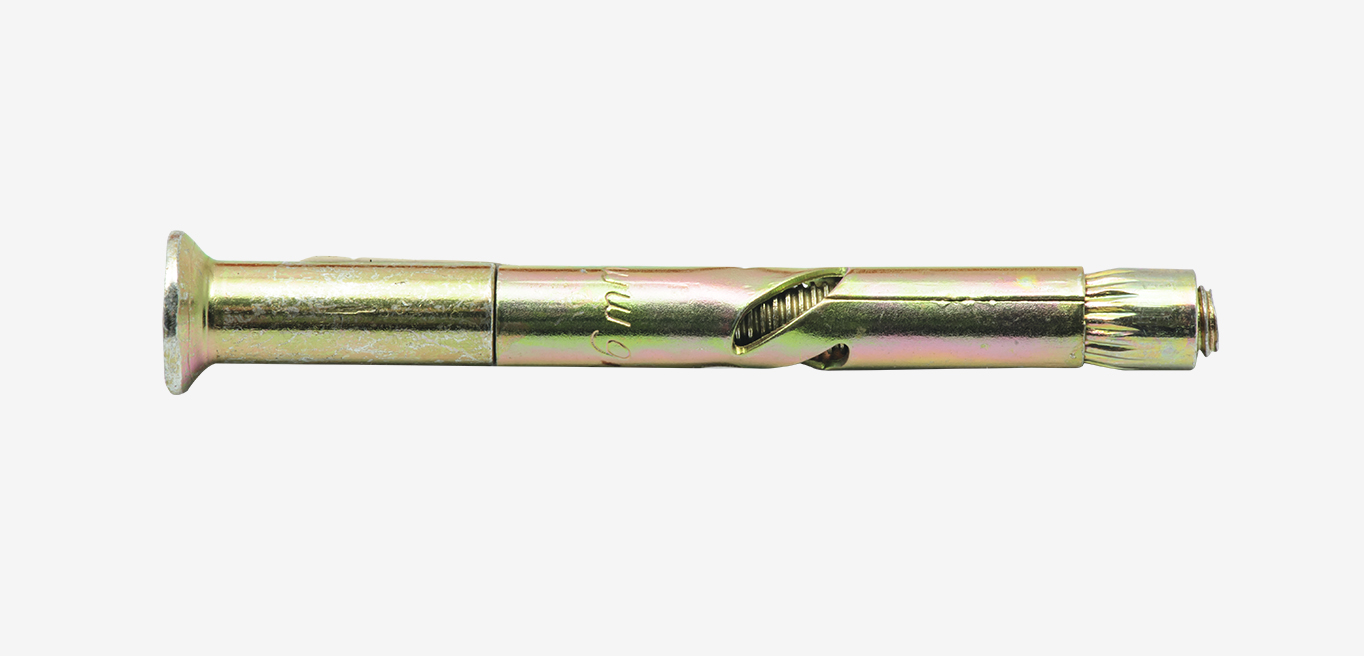

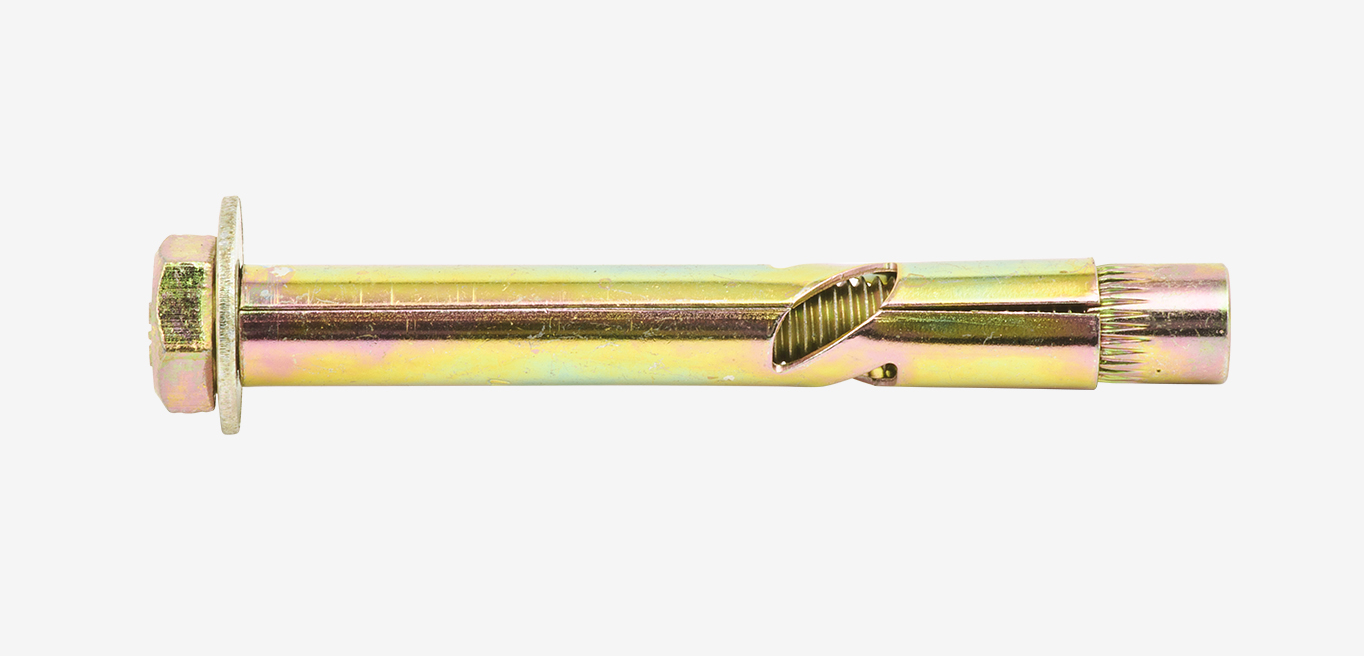

DynaBolt Plus Sleeve Anchor
The DynaBolt Plus Sleeve Anchor is a medium duty, torque controlled, expansion anchor, with an integrated pull-down section, designed for medium duty anchoring of timber and steel fixtures to concrete, brick or block. It is available in a variety of different head styles and finishes.
Deskripsi
The DynaBolt Plus Sleeve Anchor is a medium duty, torque controlled, expansion anchor, with an integrated pull-down section, designed for medium duty anchoring of timber and steel fixtures to concrete, brick or block. It is available in a variety of different head styles and finishes.
Dependable anchoring solutions
The integrated pull-down section of the torque-controlled expansion anchor DynaBolt Plus Sleeve Anchor means strong holding power.
With reliable load-bearing capacity for medium-duty anchoring, secure structural and critical components inside or out, in even the harshest environments.
Versatile use across substrates
The DynaBolt Plus Sleeve Anchor can be used for residential, DIY, commercial, and industrial applications including:
- Fixing timber bottom plates to concrete slabs
- Mounting handrails and balustrades
- Attaching window frames to masonry walls.
Fitur dan Manfaat
- Patented expansion sleeve closes gaps of up to 5mm, pulling down on the fixture to induce clamp load and provide improved security
- Fully assembled through fixture anchor
- Assembly, marking out and re-positioning of fixtures is eliminated making installation fast and easy
- Choice of multiple head styles makes the DynaBolt Plus a versatile anchor for a variety of different applications
Material & Aplikasi
Spesifikasi
| Material | Carbon Steel, Stainless Steel 316 (A4) |
|---|---|
| Corrosion Protection | Zinc Plating, Galvanising, Gold Passivated |
| Head Styles | Hex Nut, Hex Bolt, Countersunk/Flat Head, Round Head, Hook, Eye, Tie Wire |
| Fixing Method | Through Fixture |
| Setting Method | Torque Controlled |
| Anchoring Method | Expansion |
| Thread Diameters | M4.5, M6, M8, M10, M12, M16 |
| Drilled Hole Diameters | 6mm, 8mm, 10mm, 12mm, 16mm, 20mm |
| Anchor Lengths | 26mm, 32mm, 34mm, 38mm, 40mm, 41mm, 45mm, 49mm, 55mm, 57mm, 60mm, 62mm, 65mm, 66mm, 70mm, 75mm, 76mm, 80mm, 81mm, 85mm, 92mm, 98mm, 100mm, 103mm, 105mm, 106mm, 110mm, 113mm, 124mm, 125mm, 126mm, 140mm, 157mm |
| Maximum Fixture Thickness | 3mm, 5mm, 6mm, 8mm, 10mm, 12mm, 15mm, 20mm, 25mm, 30mm, 32mm, 35mm, 45mm, 49mm, 50mm, 55mm, 60mm, 65mm, 70mm, 80mm |
| Indicative Working Loads in 32MPa Concrete* | Max Tensile 2.7kN -16.6kN |
| Max Shear | 2.5kN – 15.6kN |
| Substrates | Concrete, Solid Brick, Solid Block, Hollow Brick, Hollow Block, Hollow Slab |
APPLICATIONS & TRADES
| Bottom plates | Carpenter |
|---|---|
| Hand rails | Construction Contractor |
| Window frames | Window Installer |
| Pallet racking | Racking Installer |
